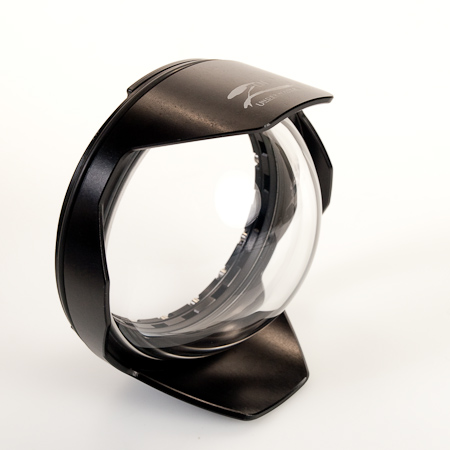

DP-100 100mm Fisheye Dome Port

For close-focus wide angle work, Zen Underwater is turning conventional 'big dome' wisdom on its ear with a 100mm (4") dome port. As an added bonus, the DP-100 offers welcome relief to the luggage bloat of dive photo travel and the ever increasing expense associated with checking large heavy camera systems. The DP-100 allows the photographer to get in close where a large dome just won't go for stunning close focus wide angle images.

PORT CHARTS


Features
  • BK7 Optical Glass Dome

    The DP-100 is constructed from hand crafted materials with an optically coated BK7 glass dome at its core. The surface of the dome element is coated with a magnesium fluoride broadband anti-reflective coating to minimize internal reflections from camera lenses, lettering on cameras, etc. which can be a problem in a bright ambient light situation.  The exterior is treated with a proprietary scratch resistant coating to control lens flare. This coating yields an amazing 99.7%+ transmissive value for true distortion free images.

  • DP-100-CR

    One of our newest additions is the DP-100-CR model, which offers a removable shade to utilize the Canon 8-15mm FE in its full range. This is currently available for Nauticam, Sea & Sea, and Aquatica.

  • Aluminum Shade

    The heavy duty aluminum shade is designed to offer a lifetime of service and extends far enough to protect the dome when placed face down.

Specifications
MountModelWeightDiameterRadius of CurvatureDepth Rating
Nauticam N120 DP-100-N120T .65 kg (1.44 lb) 113mm (4.45 in) 50mm (1.97 in) 100m
Nauticam N120 DP-100-N120CR .70 kg (1.54 lb) 122mm (4.80 in) 50mm (1.97 in) 100m
Nauticam N120 DP-100-N120N .49 kg (1.08 lb) 113mm (4.45 in) 50mm (1.97 in) 100m
Nauticam N85 DP-100-N85 .39 kg (.82 lb) 113mm (4.45 in) 50mm (1.97 in) 100m
Sea & Sea DP-100-ST .65 kg (1.44 lb) 113mm (4.45 in) 50mm (1.97 in) 100m
Sea & Sea DP-100-SCR .70 kg (1.54 lb) 122mm (4.80 in) 50mm (1.97 in) 100m
Sea & Sea DP-100-SN .49 kg (1.08 lb) 113mm (4.45 in) 50mm (1.97 in) 100m
Subal Type 3 DP-100-S3 .32 kg (.70 lb) 113mm (4.45 in) 50mm (1.97 in) 100m
Subal Type 4 DP-100-S4 .32 kg (.70 lb) 113mm (4.45 in) 50mm (1.97 in) 100m
Ikelite DP-100-IT .52 kg (1.14 lb) 113mm (4.45 in) 50mm (1.97 in) 100m
Aquatica DP-100-AT .56 kg (1.24 lb) 113mm (4.45 in) 50mm (1.97 in) 100m
Aquatica DP-100-ACR .61 kg (1.34 lb) 113mm (4.45 in) 50mm (1.97 in) 100m
